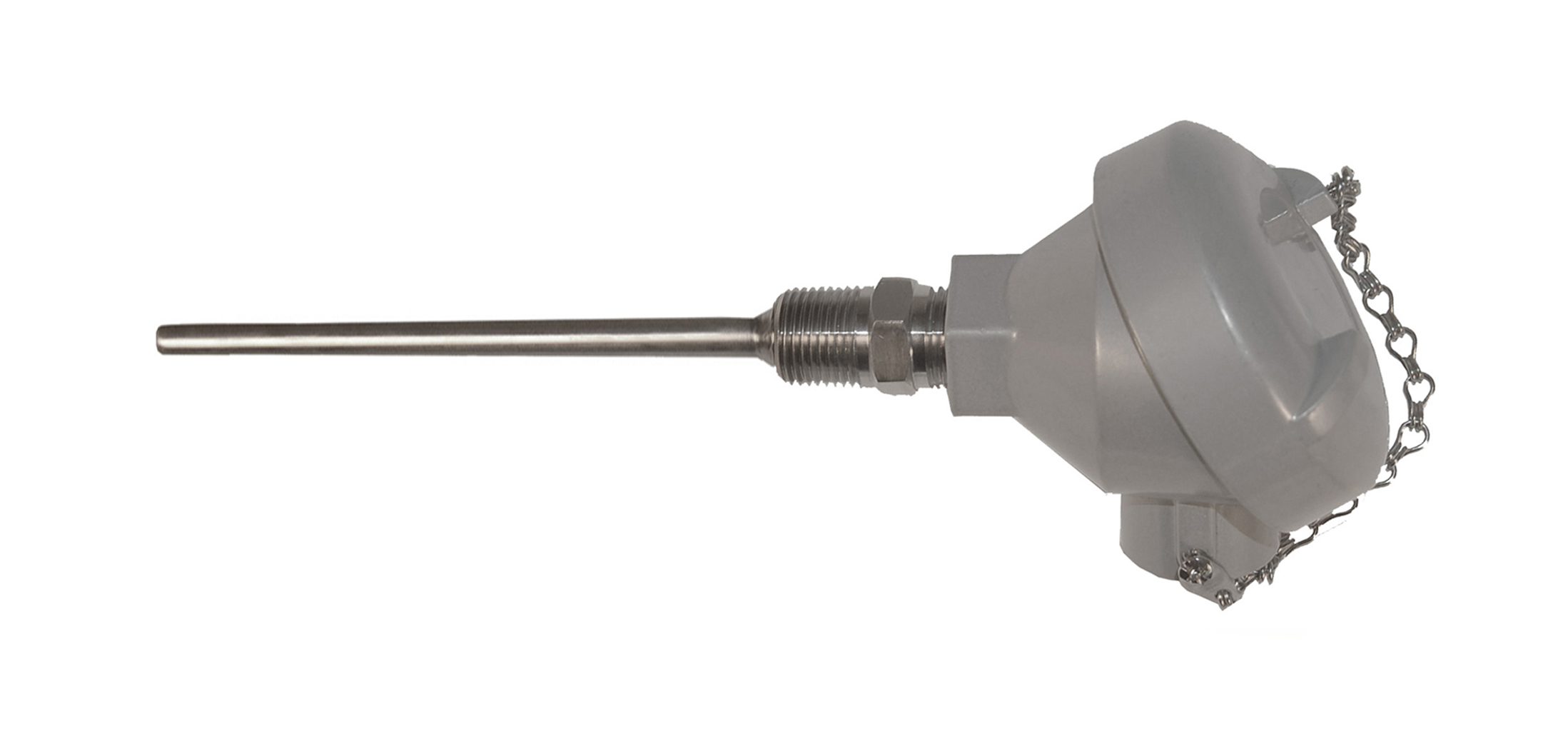

.375″ (3/8″) Fixed Sheath Industrial Probe IND3434
$47.00 – $113.60
We design and build Industrial Thermocouple Probes for heavy duty use. These probes are far more durable in harsh environments. Applications include, pipelines, tanks, ovens/kilns, and more. Industrial builds feature components for high temperature use. As well as corrosive protection. Industrial Probes also feature a protective head to keep dust and moisture out. Choose from various lengths, diameters, sheath materials, and housings. Order a custom design from our Industrial Configurator today. Or select one of our pre-configured builds below. (Check out the Industrial configurator for more details.)
| Sensor Type | Type J (Iron/Constantan) | Type K (Chrome/Alumel) |
| Temp. Range | 32° F ~ 1382° F (J) | 32° F ~ 2000° F (K) |
| Connection Head | Aluminum (NEMA 4) |
| Sensor O.D. | .375" (3/8") Diameter 316 SST |
| Junction Type | Grounded, Ungrounded, Exposed |
| Elements | Single, Dual |
| Probe Shaft Length | 4", 6", 12", 24", 36" |
| "B" Dimension | 0" |
| Hardware | Welded Nipple 1/2 x 1/2 NPT |
