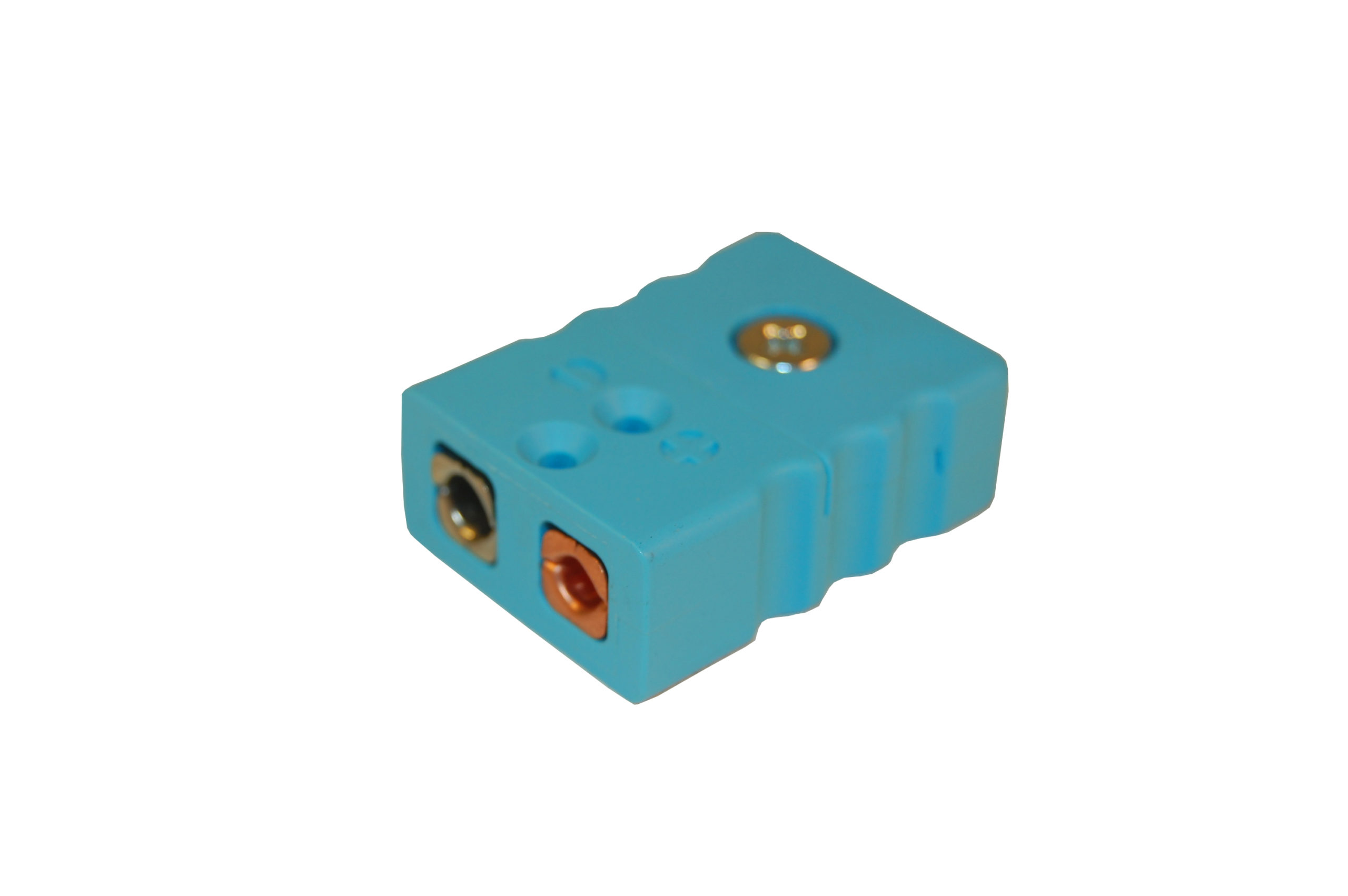

Female Type T Standard Jack
$4.25
Connector for thermocouple and RTD circuits. Solid pin design ensures good contact even in demanding applications. Hollow pin design offers a good quality product at competitive pricing for less frequently used connectors
Construction
- Glass filled high quality thermoplastic body with original thermocouple material pins and spring loaded inserts.
- Polarized pins.
- Central cover screw design for quick wiring.
- Molded barriers prevent short circuit
- Captive cover screw for easy assembly.
- Easy wire connection through sandwich construction.
- Stainless Steel screws with combination head (Slotted and Phillips)
Wire Size
- Accept wires up to 0.078 inches
- Maximum cable diameter 0.314 inches
Temperature Rating
- 200° C Max.
