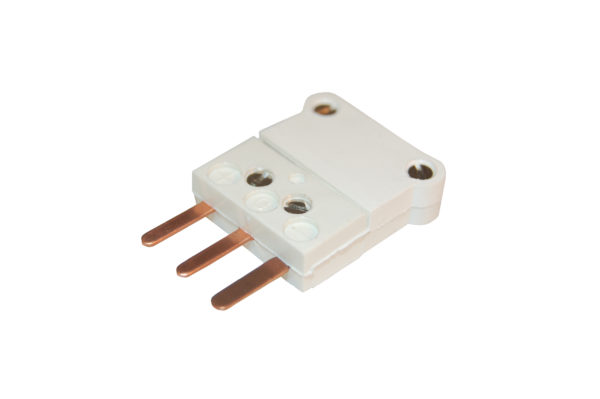

Male Three Pin Mini-Connector
$6.25
Connector for thermocouple and RTD circuits. Suited for small wires and mineral insulated cables. Third connection for ground and continuous shield connection or for three wire RTD's
Construction
- Glass filled high quality thermoplastic body with original thermocouple material pins and spring loaded inserts.
- Polarized pins ensure proper connection.
- Easy wire connection through sandwich construction.
- Molded barriers prevent short circuit
- Rugged one body design
Wire Size
- Accept wires up to 0.023 inches
- Maximum cable diameter 0.177inches
Temperature Rating
- 200° C Max.
Related products
-

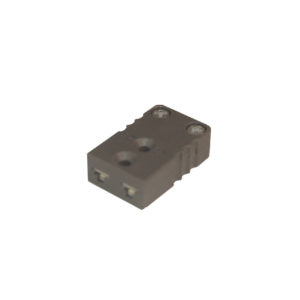

Female Type J Mini-Jack $4.25 -
